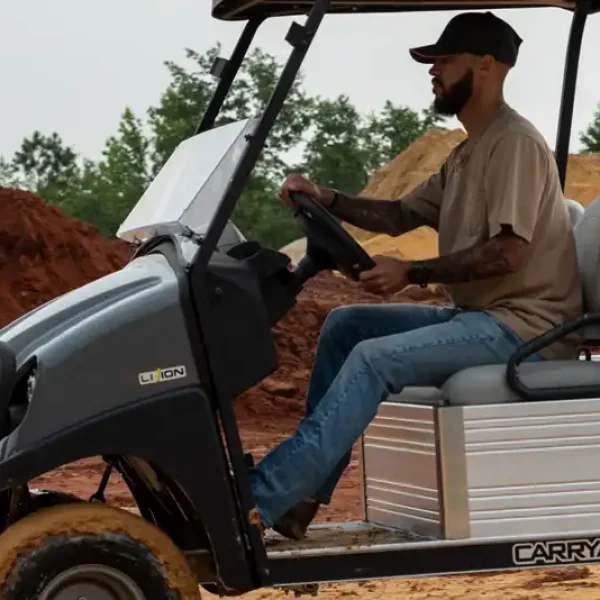

CARRYALL 550 UTILITY VEHICLE
Carryall 550 is the perfect UTV for construction sites, industrial locations, and other formidable work tasks.
TOUGH ENOUGH FOR ANY TASK
Built to be rugged and versatile, the Carryall 550 UTV is a perfect solution for industrial and commercial jobs
NEED MORE GROUND CLEARANCE
Maneuver over the most difficult terrain with the Carryall 550 gas or electric utility vehicle, featuring 6 inches of ground clearance (the most in its class), a sturdy brush guard, aircraft-grade aluminum frame, and rough terrain tires.
This rugged UTV option is perfect for a variety of tough applications.
TACKLE ANY JOB WITH CLUB CAR ACCESSORIES
Designed with tools in mind, the easy-to-use Versattach system of holders and dividers makes loading your tools safely a problem of the past.
CARRYALL 550 WITH LI-ION
Carryall 550 available with a powerful, durable maintenance-free lithium option with the added benefits of:
- Maintenance Free Battery: no time spent on battery watering or terminal cleaning.
- Longer Battery Life: designed to last up to 10 years!
- More Efficient Charging: up to 40% faster charge times than lead acid battery powertrains.
- Increased Power and Performance: best-in-class hill climb power.
- Lighter Weight: nearly 400 lbs lighter than equivalent lead acid powered vehicles.
- Range Consistency: lithium battery capacity does not degrade over time.
FEATURES
ROCK SOLID ALUMINUM BED
800 lb capacity with more than 14.5 sq ft of easily opened bed space, capable of transporting a full size pallet.
BUILT TO LAST
With a no-rust aluminum frame, Carryall works harder, longer.
EASY-OPEN TAILGATE
Designed for quick, easy release.
SMOOTH HANDLING
Self-Adjusting Rack and Pinion Steering.
4-WHEEL BRAKING
Brake with confidence and control.
SCRATCH RESISTANT
TPO Plastic Cowl with no-fastener design for ease of service.
HEAVY DUTY SUSPENSION
Featuring self-adjusting rack and pinion steering, plus toe-in and camber adjustment, Carryall vehicles provide a smooth and stable ride.
DURABLE
Aluminum body panels maintain the aesthetic look over the life of the vehicle while resisting rust and corrosion.
WARRANTY
Best-in-class
ALWAYS READY!
- Ergonomic dash with automotive feel
- Extra ground clearance for rugged terrain
- Onboard charger with cord reel on electric cars
- USB charger option
- Easy clean up
- Multiple cargo bed options
- Options and accessories for various applications
SPECIFICATIONS
CARRYALL 550
ELECTRIC LI-ION
| Motor/ Engine | 48-volt AC |
| Horsepower | 7.4hp (5.5kW) rated; Peak 21.4hp (16kW) |
| Batteries | Vanguard Lithium-Ion |
| Charger | High Frequency DeltaQ 650W (upgrade to 900W optional) |
| Max. Speed | 8-31 kph |
| Fuel Capacity | N/A |
GASOLINE
| Motor/ Engine | 429 cc Kohler, Overhead Valve (OHV) with EFI |
| Horsepower | 14.0 hp (10.3 kW) rated @ 3600 RPM per SAE J1940 |
| Batteries | One 12-volt 500 CCA; 105 min Reserve |
| Charger | N/A |
| Max. Speed | 24-27 kph |
| Fuel Capacity | 20.8 L |
HP ELECTRIC AC
| Motor/ Engine | 48-volt AC |
| Horsepower | 3.7 hp (2.7 kW) rated; Peak 20 hp (14.9 kW) |
| Batteries | (8) 6-volt Flooded Lead Acid |
| Charger | DeltaQ QuiQ (1 kW High Frequency) |
| Max. Speed | 8-27 kph |
| Fuel Capacity | N/A |
ELECTRIC
| Steering | Self-adjusting Rack and Pinion |
| Front Suspension | Independent leaf spring w/dual hydraulic shocks |
GAS
| Steering | Self-adjusting Rack and Pinion |
| Front Suspension | Independent leaf spring w/dual hydraulic shocks |
ELECTRIC
| Brakes | 4-wheel Mechanical Drum |
| Park Brake | Foot operated, multi-lock |
GAS
| Brakes | 4-wheel Mechanical Drum |
| Park Brake | Foot operated, multi-lock |
ELECTRIC
| Body and Finish | ArmorFlex™ with automotive paint/clearcoat |
| Tires | 22 x 10 – 10, 4-ply (Turf tread) 22 x 10 – 10, 6-ply (heavy-duty, all-terrain) |
| Bed LxWxH | 44.2 x 47.5 x 10.5 in (112.2 x 120.6 x 26.6 cm) |
| Wheelbase | 78.1 in. (198.3 cm) |
| Ground Clearance | 6 in. (15.2 cm) |
| Bed Load Capacity | 500 lbs. (226.7 kg) |
| Vehicle LxH | 118 in. (299.7 cm) x 51.2 in. (130 cm) |
| Total Payload Capacity | 900 lbs (408.2 kg) |
GAS
| Body and Finish | ArmorFlex™ with automotive paint/clearcoat |
| Tires | 22 x 10 – 10, 4-ply (Turf tread) 22 x 10 – 10, 6-ply (heavy-duty, all-terrain) |
| Bed LxWxH | 44.2 x 47.5 x 10.5 in (112.2 x 120.6 x 26.6 cm) |
| Wheelbase | 78.1 in. (198.3 cm) |
| Ground Clearance | 6 in. (15.2 cm) |
| Bed Load Capacity | 500 lbs. (226.7 kg) |
| Vehicle LxH | 118 in. (299.7 cm) x 51.2 in. (130 cm) |
| Total Payload Capacity | 900 lbs (408.2 kg) |
